Triple-Panel Aluminum Ventilation Door

Solid and Reliable Structure realized by H-Shape frame design.

FEATURES

Consist of two sliding and 1 fixed panel, the Triple-Panel Ventilation Door based on 2 panel ventilation door successful experience, has a solid and reliable H-SHAPED structural design. By using industrial grade cable to balance 2 moving panel weight, the door construction achieve perfect balance between simplicity & reliability for user.

DURABILITY TEST

Size : W 900 * H 2,100 mm

Durability Test : 600 mm / 100,000 times

Loading : 15 kg of glass

WEATHER RESISTANCE TEST

Size : W 1,000 * H 1,500 mm

Airtightness Test : Level 8

Wind Resistance Test : 280 Kgf / m²

Water Tightness Test : 15 Kgf / m²

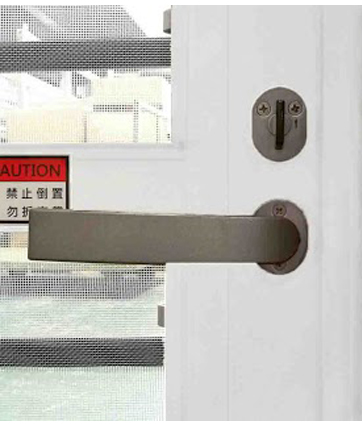

LOCKER HANDLE TEST

Salt Spray Test : 500 hrs

Rebound Resilience Test : 100,000 times

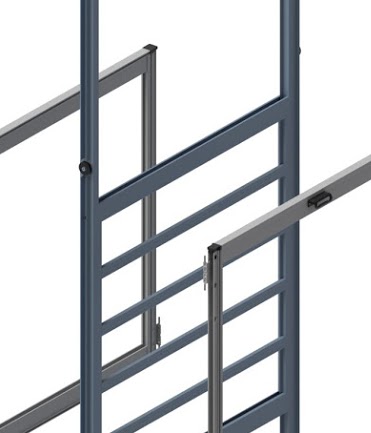

3-panel ventilation door construction design consist of two sliding and 1 fixed panel.

Optional handlebar.

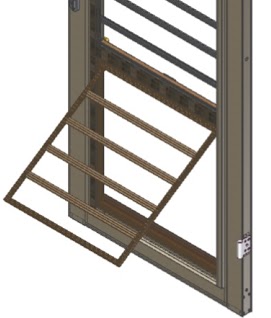

Pet door available.
