HISS Eco Friendly Ventilation Door

Twin-Panel Ventilation Door

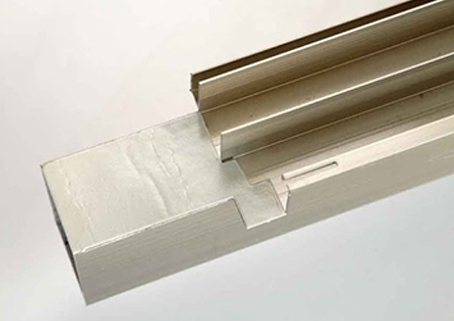

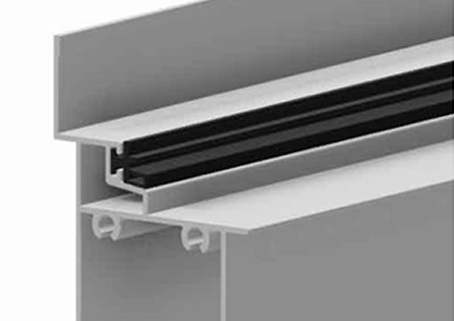

Strong structure achieved by 94 mm width aluminum extrusion.


FEATURES

To achieve better air circulation, the elegance design ventilating door balances differential air
 pressure and temperature, maximizing space utilization by integrating of multi functions,
including ventilation, anti-theft and anti-insect functions.

DURABILITY TEST

Size : W 900 * H 2,100 mm
Durability Test : 430 mm / 100,000 times
Loading : 25 kg of glass

WEATHER RESISTANCE TEST

Size : W 900 * H 1,500 mm
Airtightness Test : Level 8
Wind Resistance : 280 Kgf / m²
Water Tightness Test : 25 Kgf / m²

LOCKER HANDLE TEST

Salt Spray Test : 500 hrs
Rebound Resilience Test : 100,000 times
