(2G) Twin-Panel Aluminum Ventilation Door

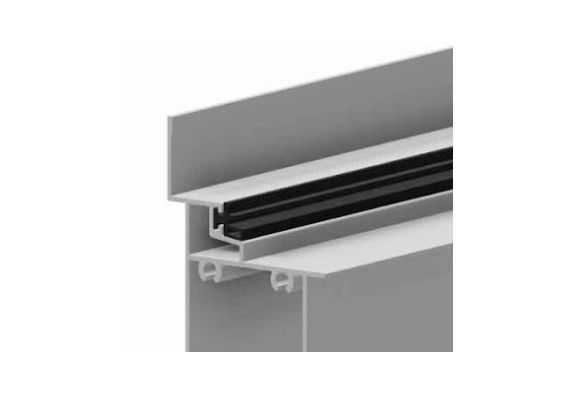

Optimal water tightness

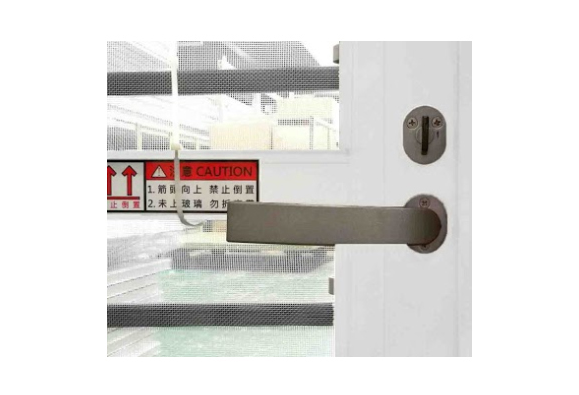

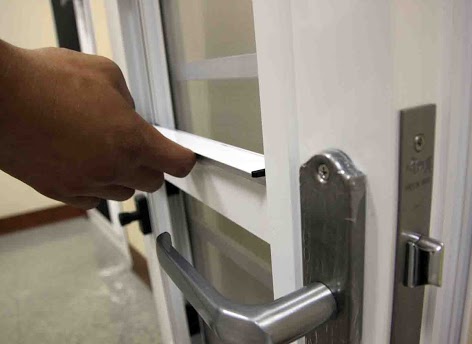

Integrated Handle for smooth operation.
FEATURES

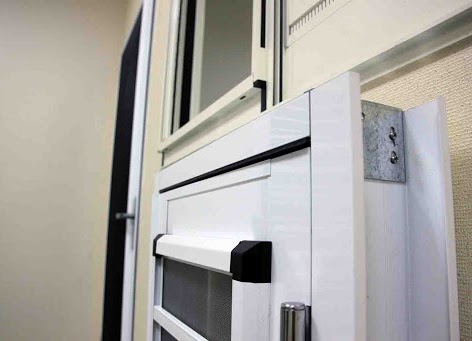

Superior air circulation
The elegance design ventilating door balances differential air pressure and temperature,

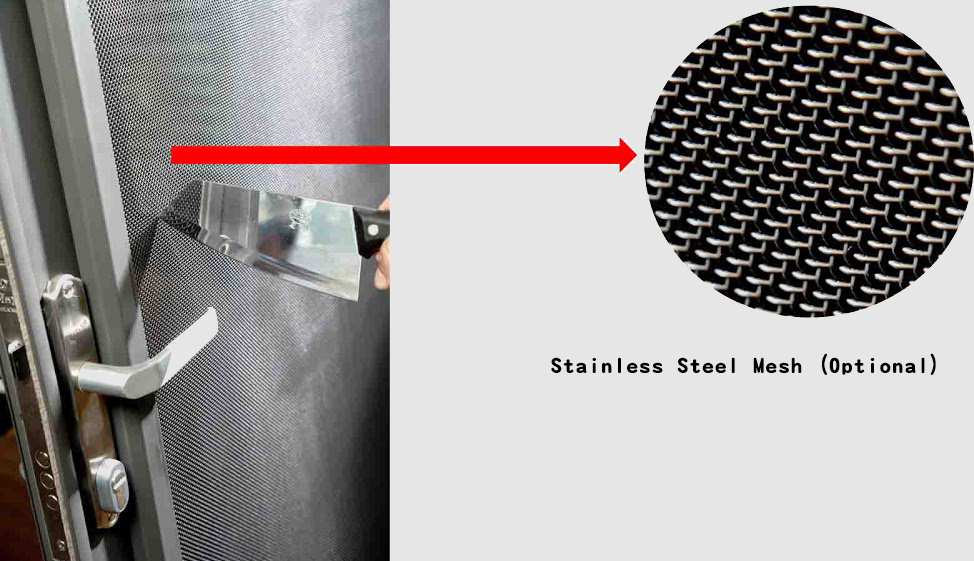

maximizing space utilization by integrating of multi functions, including ventilation, anti-theft

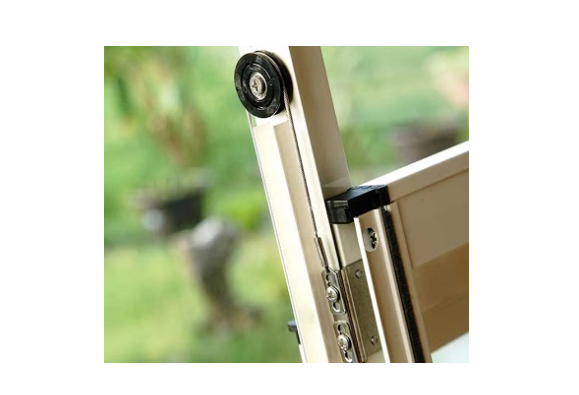

and anti-insect functions. Solid structure Steel sliding cable reduces opening force and noise
when operating.
DURABILITY TEST
Size : W 900 * H 2,100mm
Durability Test : 430 mm / 100,000 times
Loading : 25 kg of glass
WEATHER RESISTANCE TEST
Size : W 900 * H 1,500 mm
Airtightness Test : Level 8
Wind Resistance : 280 kgf / m²
Water Tightness Test : 25 kgf / m²
LOCKER HANDLE TEST
Salt Spray Test : 500 hrs
Rebound Resilience Test : 100,000 times
